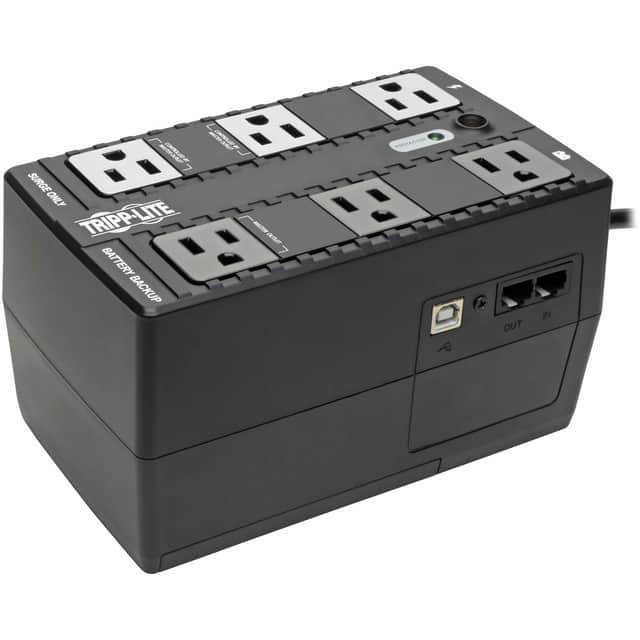

Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes three battery-supported outlets for computer, monitor and one vital system peripheral, plus three additional surge suppression-only outlets for accessories not requiring battery support. Two of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 350VA/180-watt power handling ability supports entry-level PC systems for up to 12 minutes during power fail conditions.
| Dimensions / Specifications | |
|---|---|
| Unit of Measure | EA |
| Item Dimensions | 7.70 in. x 4.10 in. x 11.30 in. (W x H x D) |
| Item Weight | 5.900 lbs |
| Box Pack Quantity | 1 EA |
| Carton Pack Quantity | 6 EA |
| Carton Pack Dimensions | 15.51 in. x 11.26 in. x 23.30 in. (W x H x D) |
| Carton Pack Weight | 36.800 lbs |
| This item is sold by the EA | |
| Shipping Info | |
|---|---|
| Can Ship via UPS? | Yes |
| Can Ship via Air Carrier? | Yes |
| Hazmat restrictions? | No |
| Additional Information | |
|---|---|
| Has Energy Star Rating? | Yes |
| Considered Green (less environmental impact)? | Yes |
| Made of Some or All Recycled Materials? | No |
| Warranty Offered? | Yes |
| Warranty Comments | Manufacturer's limited three-year warranty. |
| Underwriter's Laboratory Listed? | Yes |
| Item Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | ECO350UPS |
| Product Series | ECO |
| Product Model | ECO350UPS |
| Product Name | ECO350UPS 350VA Ultra-compact Desktop/Tower/Wall Mount UPS |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Surge-only Outlets | 3 |
| Overload Protection | Yes |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Retail |
| Application/Usage | Hospital |
| Application/Usage | Computer Peripheral |
| Load Capacity (VA) | 350 VA |
| Load Capacity (Watt) | 210 W |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 316 J |
| Alarm | Battery Fault |
| Alarm | Overload |
| Alarm | Low Battery |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 12 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Typical Battery Recharge Time | 6.50 Hour |
| Replaceable Battery | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 133°F (56.1°C) |
| Maximum Storage Elevation | 6561 ft |
| Color Family | Black |
| Product Color | Black |
| Height | 4.13" |
| Width | 4.33" |
| Depth | 7.28" |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 5 lb |
| Package Contents | ECO350UPS 350VA Ultra-compact Desktop/Tower/Wall Mount UPS, USB Cable, Owner's Manual |
| Certifications & Standards | UL Listed Certification |
| Recycled | No |
| Assembly Required | No |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 2 year $100,000 connected equipment guarantee |
| Manufacturer Info | |
|---|---|
| Brand | Tripp Lite by Eaton |
| Warranty Offered? | Yes |
| Manufacturer SKU | ECO350UPS |
| Retail GTIN (UPC) | 00037332210982 |
| Country of Origin | CN |
| UNSPSC Number | 39121011 |
| Product ID | 9288135 |
