Line-interactive UPS provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Five 5-15R outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets are surge-protected only for printers, scanners and other non-essential equipment. ECO power-saving option turns off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. Automatic voltage regulation (AVR) corrects low-voltage conditions to protect your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. Built-in audible alarm sounds to warn you of a low battery or overload conditions.
| Dimensions / Specifications | |
|---|---|
| Unit of Measure | EA |
| Item Dimensions | 14.53 in. x 7.48 in. x 19.49 in. (W x H x D) |
| Item Weight | 27.940 lbs |
| Carton Pack Quantity | 1 EA |
| Carton Pack Dimensions | 7.48 in. x 14.53 in. x 19.49 in. (W x H x D) |
| Carton Pack Weight | 27.940 lbs |
| This item is sold by the EA | |
| Shipping Info | |
|---|---|
| Can Ship via UPS? | Yes |
| Can Ship via Air Carrier? | Yes |
| Hazmat restrictions? | No |
| Additional Information | |
|---|---|
| Has Energy Star Rating? | Yes |
| Considered Green (less environmental impact)? | No |
| Made of Some or All Recycled Materials? | No |
| Warranty Offered? | Yes |
| Warranty Comments | Manufacturer's limited three-year warranty. |
| Item Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | ECO1500LCD |
| Product Series | ECO |
| Product Model | ECO1500LCD |

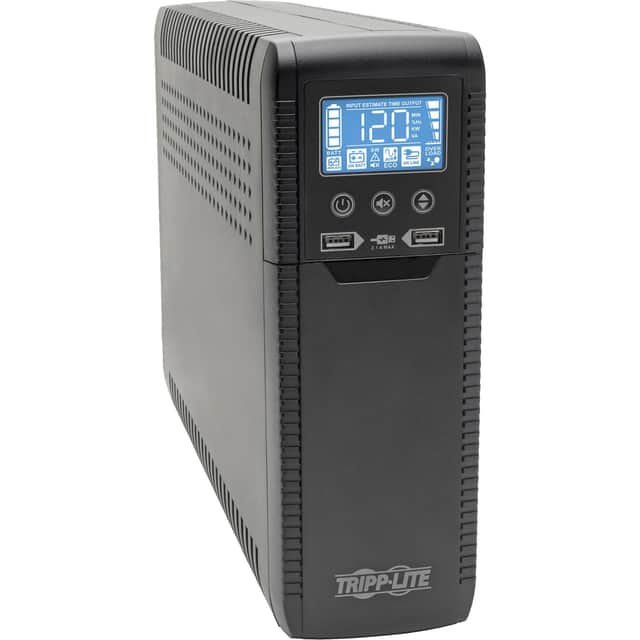

| Product Name | ECO1500LCD 1440VA Tower UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Dataline Protection | RJ-11 |
| Dataline Protection | RJ-45 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Desktop Computer |
| Application/Usage | Home Theater |
| Application/Usage | Router |
| Application/Usage | Printer |
| Application/Usage | Workstation |
| Load Capacity (VA) | 1440 VA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Alarm | Low Battery |
| Alarm | Fault |
| Alarm | Overload |
| Alarm | Replace Battery |
| DC System Voltage | 24 V DC |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Typical Battery Recharge Time | 7 Hour |
| Hot Swappable | Yes |
| Height | 11" |
| Width | 3.90" |
| Depth | 16.14" |
| Form Factor | Tower |
| Weight (Approximate) | 26.44 lb |
| Package Contents | ECO1500LCD 1440VA Tower UPS, USB Cable, Owner's Manual |
| Certifications & Standards | Energy Star, UL Listed Certification |
| Assembly Required | No |
| Energy Star | Yes |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 year limited warranty |
| Manufacturer Info | |
|---|---|
| Brand | Tripp Lite by Eaton |
| Warranty Offered? | Yes |
| Manufacturer SKU | ECO1500LCD |
| Retail GTIN (UPC) | 00037332205162 |
| Country of Origin | CN |
| UNSPSC Number | 39121011 |
| Product ID | 7685506 |
