Tripp Lite Isobar Premium Surge Protectors, Gray, NEMA 5-15P, 6 x NEMA 5-15R, 1440 VA, 3330 J, 120 V AC Input, 120 V AC Output, 61 kA, 6 ft, 1 Each

Item # TRPISOBAR6ULTRA
Ships via
  • TRPISOBAR6ULTRA Image Thumbnail 1
  • TRPISOBAR6ULTRA Image Thumbnail 1
  • TRPISOBAR6ULTRA Image Thumbnail 2
  • TRPISOBAR6ULTRA Image Thumbnail 3
  • TRPISOBAR6ULTRA Image Thumbnail 4
  • TRPISOBAR6ULTRA Image Thumbnail 5
  • TRPISOBAR6ULTRA Image Thumbnail 6
  • TRPISOBAR6ULTRA Image Thumbnail 7
  • TRPISOBAR6ULTRA Image Thumbnail 8
  • TRPISOBAR6ULTRA Image Thumbnail 9
  • Free Shipping Icon Free Shipping
  • Security Icon Secure Shopping
  • NET-30 Icon NET-30 Terms
  • USA Icon Made In USA
Office Expert
Ask Our Office Concierge
Let our knowledgeable staff help you today!

Product Details

Product Highlights
  • Robust surge suppression protects against heavy surge conditions
  • Filter banks prevent system crashes, reboots and performance problems
  • Widely spaced outlets accept transformer plugs without blocking outlets
  • Diagnostic LEDs provide quick reference to power availability
  • Space-saving, angled input plug keeps your other outlets available

Isobar 6-Outlet Surge Protector offers premium protection for A/V components, network hardware, retail displays, appliances, power tools and more against dangerous surges, spikes and line noise. Network-grade, surge protection rating of 3330 joules defends your sensitive electronics against even the strongest surges and spikes. Surge protector protects all three residential wires - hot line, neutral and ground, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). Six widely spaced NEMA 5-15R outlets are arranged in three exclusive isolated filter banks to filter out electromagnetic interference (EMI) and radio frequency interference (RFI). Included safety covers block accidental contact with unused outlets. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The 6' (1.8 meter) AC power cord includes a space-saving right-angle NEMA 5-15P plug.

Product Specifications

Dimensions / Specifications
Unit of Measure EA
Item Dimensions 7.20 in. x 3.10 in. x 11.70 in. (W x H x D)
Item Weight 2.800 lbs
Carton Pack Quantity 12 EA
Carton Pack Dimensions 12.52 in. x 12.64 in. x 21.85 in. (W x H x D)
Carton Pack Weight 36.260 lbs
This item is sold by the EA
Shipping Info
Can Ship via UPS? Yes
Can Ship via Air Carrier? Yes
Hazmat restrictions? No
Additional Information
Considered Green (less environmental impact)? No
Made of Some or All Recycled Materials? No
Warranty Offered? Yes
Warranty Comments Manufacturer's limited lifetime warranty.
Item Specifications
Manufacturer Eaton Corporation
Manufacturer Part Number ISOBAR6ULTRA
Product Line Isobar
Product Model ISOBAR6ULTRA
Product Name Isobar Premium Surge Protectors
Packaged Quantity 1 Each
Product Type Surge Suppressor/Protector
Plug/Connector Type NEMA 5-15P
Receptacles 6 x NEMA 5-15R
Protection Type Surge
Input Voltage 120 V AC
Output Voltage 120 V AC
Maximum Line Current 15 A
Maximum Surge Current 61 kA
Power Handling 1440 VA
Surge Energy Rating 3330 J
Status Indicators Line OK, Line Fault, Protection Present
Color Family Gray
Product Color Gray
Power Cord/Cable Length 6 ft
Height 2.5"
Width 9"
Depth 3.5"
Weight (Approximate) 2.18 lb

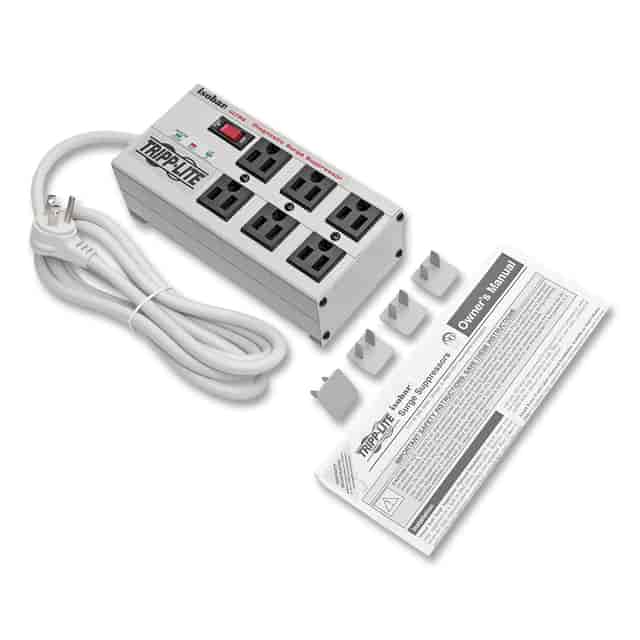

Package Contents Isobar 6 Outlets 120V Surge Suppressor, ISOBAR6ULTRA premium surge suppressor, Set of 4 outlet safety covers, Instruction manual with warranty information
Additional Information Metal end caps are fitted with keyhole mounting tabs for wallmount installation, Rugged all-metal corded strip format with high quality duplex receptacles, Supports up to 4 large transformer plug accessories without covering remaining outlets, Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment
Compatibility Ideal for premium AC and phone line protection for personal computers with peripherals, network and CAD/CAM/CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio / video and home theater systems in any home, office or industrial application
Certifications & Standards UL1449 (let through rating 330V), UL1283, UL1363, UL497A, FCC Part 68, cUL, IEEE 587 category A and B
Recycled No
Assembly Required No
Country of Origin China
Limited Warranty Lifetime
Manufacturer Info
Brand Tripp Lite by Eaton
Warranty Offered? Yes
Manufacturer SKU ISOBAR6ULTRA
Retail GTIN (UPC) 00037332010544
Country of Origin CN
UNSPSC Number 39121610
Product ID 5630462
