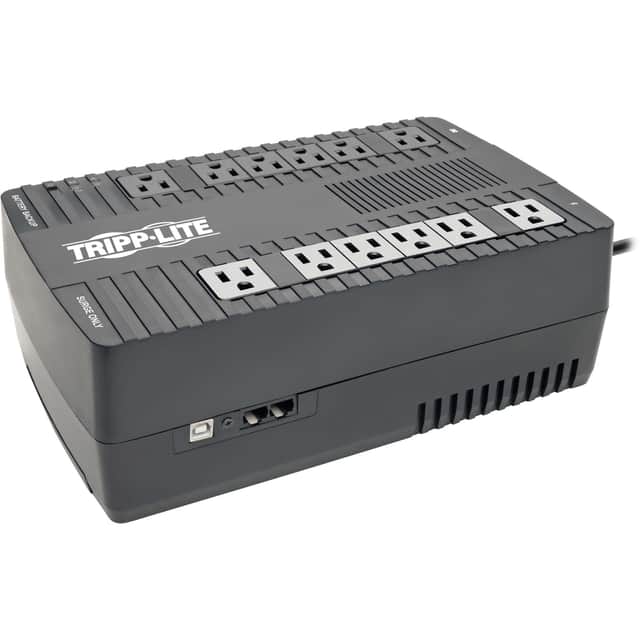

Tripp Lite AVR 900VA Desktop UPS, Ultra-compact Desktop/Tower/Wall Mount, AVR, 8 Hour Recharge, 2.70 Minute Stand-by, 120 V AC Input, 110 V AC, 115 V AC, 120 V AC Output, Single Phase, USB
Click image to zoom in
-
Free Shipping
-
Secure Shopping
-
NET-30 Terms
-
Made In USA
Product Details
Product Highlights
- UPS circuits prevent interruption or data loss during power failures
- AVR power conditioning keeps operation during brownouts and overvoltages
- Surge-only outlets offer protection for items not requiring battery support
- AC and dataline surge suppression prevents connected equipment damage
- Perfect for protecting desktop computers, network workstations and more
Product Documents
AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
Product Specifications
| Dimensions / Specifications | |
|---|---|
| Unit of Measure | EA |
| Item Dimensions | 9.75 in. x 5.40 in. x 14.50 in. (W x H x D) |
| Item Weight | 16.300 lbs |
| Box Pack Quantity | 1 EA |
| Carton Pack Quantity | 3 EA |
| Carton Pack Dimensions | 15.67 in. x 11.81 in. x 19.68 in. (W x H x D) |
| Carton Pack Weight | 58.900 lbs |
| This item is sold by the EA | |
| Shipping Info | |
|---|---|
| Can Ship via UPS? | Yes |
| Can Ship via Air Carrier? | Yes |
| Hazmat restrictions? | No |
| Additional Information | |
|---|---|
| Considered Green (less environmental impact)? | No |
| Made of Some or All Recycled Materials? | No |
| Warranty Offered? | Yes |
| Warranty Comments | Manufacturer's limited three-year warranty. |
| Underwriter's Laboratory Listed? | Yes |
| Item Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | AVR900U |
| Product Series | AVR |
| Product Name | AVR 900VA Desktop UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| AVR | Yes |
| AVR Range | Boost +18% / Buck -15% |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Load Capacity (VA) | 900 VA |
| Load Capacity (Watt) | 480 W |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Alarm | Battery Backup |
| Alarm | Low Battery |
| Alarm | Fault |
| Alarm | Overload |
| Alarm | Replace Battery |
| Status Indicators | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 12 V DC |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Height | 4.14" |
| Width | 7.48" |
| Depth | 12" |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 16.50 lb |
| Package Contents | AVR 900VA Desktop UPS, Owner's manual |
| Additional Information | Appearance: All black ultra-compact housingOutput voltage regulation: Sine wave 120V +14% / -12% (line mode), PWM sine wave 115V +/-5% (battery mode)Output frequency regulation: Line Mode: Passes line frequency of 60Hz +/-10%, Battery Mode: Inverter output regulated to 60Hz +/-0.5Hz |
| Certifications & Standards | UL Listed Certification |
| Software Included | PowerAlert Software |
| Assembly Required | No |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 2 year warranty $100,000 Connected equipment guarantee |
| Manufacturer Info | |
|---|---|
| Brand | Tripp Lite by Eaton |
| Warranty Offered? | Yes |
| Manufacturer SKU | AVR900U |
| Retail GTIN (UPC) | 00037332211491 |
| Country of Origin | CN |
| UNSPSC Number | 39121011 |
| Product ID | 9287426 |
