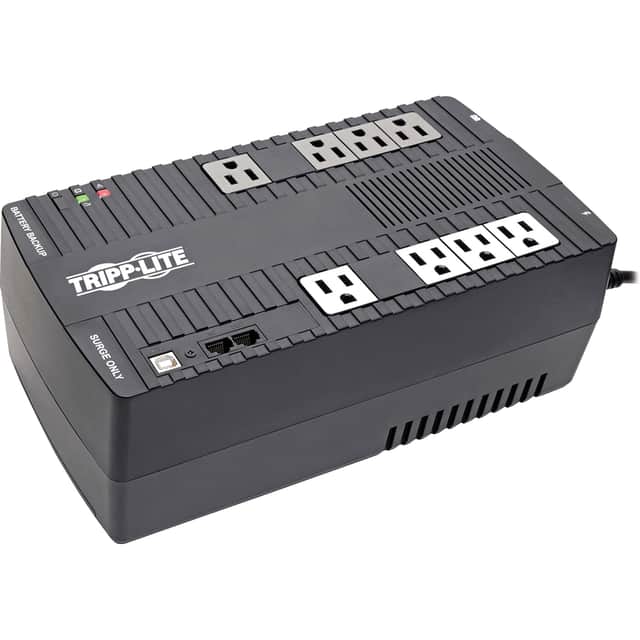

Tripp Lite Desktop/Wall Mount Battery Backup Outlets, Ultra-compact Desktop/Tower/Wall Mount, AVR, 8 Hour Recharge, 2 Minute Stand-by, 120 V AC Input, 110 V AC, 115 V AC, 120 V AC Output, Single Phase
Click image to zoom in
-
Free Shipping
-
Secure Shopping
-
NET-30 Terms
-
Made In USA
Product Details
Product Highlights
- UPS circuits prevent interruption or data loss during power failures
- AVR power conditioning keeps operation during brownouts and overvoltages
- Surge-only outlets offer protection for items not requiring battery support
- AC and dataline surge suppression prevents connected equipment damage
- Perfect for protecting desktop computers, network workstations and more
Product Documents
AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
Product Specifications
| Dimensions / Specifications | |
|---|---|
| Unit of Measure | EA |
| Item Dimensions | 8.75 in. x 4.75 in. x 13.50 in. (W x H x D) |
| Item Weight | 14.250 lbs |
| Box Pack Quantity | 1 EA |
| Carton Pack Quantity | 3 EA |
| Carton Pack Dimensions | 15.30 in. x 10.20 in. x 19.10 in. (W x H x D) |
| Carton Pack Weight | 39.000 lbs |
| This item is sold by the EA | |
| Shipping Info | |
|---|---|
| Can Ship via UPS? | Yes |
| Can Ship via Air Carrier? | Yes |
| Hazmat restrictions? | No |
| Additional Information | |
|---|---|
| Considered Green (less environmental impact)? | No |
| Made of Some or All Recycled Materials? | No |
| Warranty Offered? | Yes |
| Warranty Comments | Manufacturer's limited three-year warranty. |
| Underwriter's Laboratory Listed? | Yes |
| Item Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | AVR550U |
| Product Series | AVR |
| Product Model | AVR550U |
| Product Name | Desktop/Wall Mount Battery Backup Outlets |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| AVR | Yes |
| AVR Range | Boost +18% / Buck -15% |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Dataline Protection | RJ-11 |
| Cord Length | 6 ft |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage | Printer |
| Application/Usage | Speaker |
| Application/Usage | Computer |
| Application/Usage | Router |
| Application/Usage | TV |
| Application/Usage | Blu-ray Player |
| Application/Usage | Gaming Console |
| Application/Usage | ATM |
| Application/Usage | Security System |
| Application/Usage | Digital Signage |
| Application/Usage | Media Center |
| Application/Usage | Home/Office |
| Application/Usage | Home Theater |
| Load Capacity (VA) | 550 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage | 110 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Alarm | Battery Backup |
| Alarm | Low Battery |
| Alarm | Overload |
| Alarm | Replace Battery |
| Alarm | Fault |
| Status Indicators | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Color Family | Black |
| Product Color | Black |
| Height | 4.33" |
| Width | 6.40" |
| Depth | 12" |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 13.69 lb |
| Package Contents | Desktop/Wall Mount Battery Backup Outlets, USB cable, Owner's manual |
| Additional Information | Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher, High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less, Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure, Switches: Combination power off / on / self-test push button switch, Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices., WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications, Supports entry-level PC systems up to 17 minutes during blackout conditions, Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation, 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets, 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power, 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support, HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux |
| Certifications & Standards | Tested to UL1778 (USA), cUL1778 (Canada), NOM (Mexico), FCC Class B (Emissions), FCC Part 68, Industry Canada (Telecommunications) |
| Software Included | PowerAlert UPS monitoring software |
| Recycled | No |
| Assembly Required | No |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year Lifetime |
| Additional Warranty Information | 2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only). |
| Manufacturer Info | |
|---|---|
| Brand | Tripp Lite by Eaton |
| Warranty Offered? | Yes |
| Manufacturer SKU | AVR550U |
| Retail GTIN (UPC) | 00037332211453 |
| Country of Origin | CN |
| UNSPSC Number | 39121011 |
| Product ID | 9517772 |
