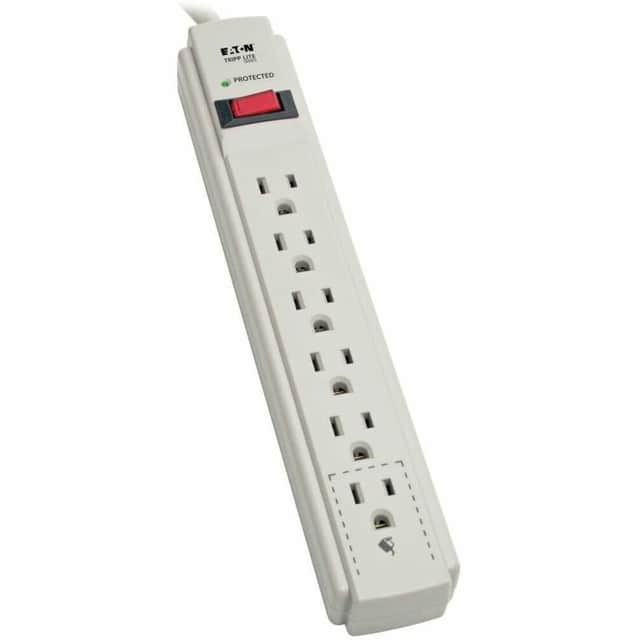

Surge protector offers economical, AC surge suppression for protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in, AC surge suppression rated at 790 joules shields connected equipment from surges, line noise, damage and performance problems due to transient surges. Six total outlets in a single row can accommodate one large transformer plug without covering remaining outlets and accepts a total of three transformers. Design also includes EMI/RFI noise filtering (up to 20dB), 15' cord, lighted power switch, 60 Hz frequency compatibility, 1875 output watts, 150 clamping voltage (RMS) and 15 amp resettable circuit breaker. Built-in LED confirms suppressor "protection present" (green) status. Suppressor plastic housing features keyhole mounting tabs for easy wall mounting.
| Dimensions / Specifications | |
|---|---|
| Unit of Measure | EA |
| Item Dimensions | 5.80 in. x 1.80 in. x 13.20 in. (W x H x D) |
| Item Weight | 1.770 lbs |
| Box Pack Quantity | 1 EA |
| Carton Pack Quantity | 6 EA |
| Carton Pack Dimensions | 11.42 in. x 6.49 in. x 14.96 in. (W x H x D) |
| Carton Pack Weight | 13.200 lbs |
| This item is sold by the EA | |
| Shipping Info | |
|---|---|
| Can Ship via UPS? | Yes |
| Can Ship via Air Carrier? | Yes |
| Hazmat restrictions? | No |
| Additional Information | |
|---|---|
| Considered Green (less environmental impact)? | No |
| Made of Some or All Recycled Materials? | No |
| Warranty Offered? | Yes |
| Warranty Comments | Manufacturer's limited lifetime warranty. |
| Underwriter's Laboratory Listed? | Yes |
| Item Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | TLP615 |
| Product Line | Protect It! |
| Product Model | TLP615 |
| Product Name | Protect It! TLP615 6-Outlets Surge Suppressor |
| Packaged Quantity | 1 Each |
| Product Type | Surge Suppressor/Protector |
| Plug/Connector Type | NEMA 5-15P |
| Receptacles | 6 x NEMA 5-15R |
| Protection Type | Surge |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Maximum Line Current | 15 A |
| Power Handling | 1875 VA |
| Surge Energy Rating | 790 J |
| Color Family | Gray |
| Product Color | Gray |
| Power Cord/Cable Length | 15 ft |
| Height | 10.8" |
| Width | 1.9" |
| Depth | 1.2" |
| Weight (Approximate) | 1.60 lb |
| Package Contents | Protect It! TLP615 6-Outlets Surge Suppressor, Instruction Manual with Warranty Information |
| Additional Information | Clamping voltage (RMS): 150V, Material of Construction: Plastic, AC Line Cord Color: Gray |
| Compatibility | Workstation, Desktop PC |
| Certifications & Standards | UL Listed Certification |
| Recycled | No |
| Assembly Required | No |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | Lifetime |
| Additional Warranty Information | $20,000 Ultimate Lifetime Insurance (USA & Canada only) |
| Manufacturer Info | |
|---|---|
| Brand | Tripp Lite by Eaton |
| Warranty Offered? | Yes |
| Manufacturer SKU | TLP615 |
| Retail GTIN (UPC) | 00037332166418 |
| Country of Origin | CN |
| UNSPSC Number | 39121610 |
| Product ID | 8982654 |
