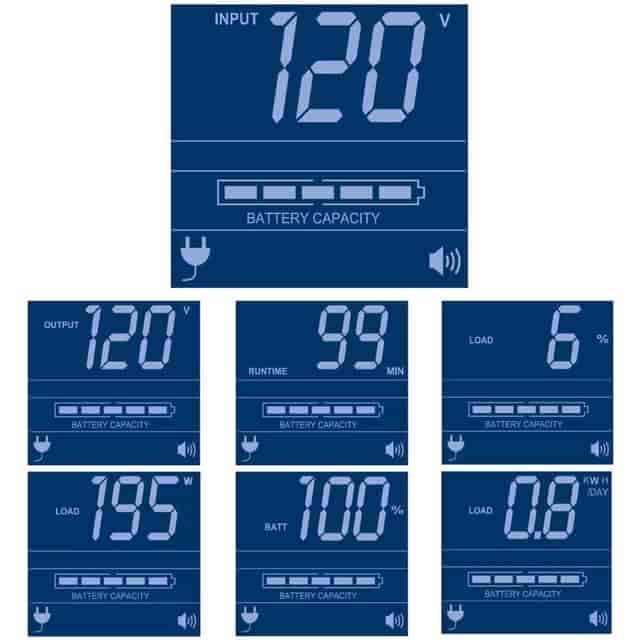

Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 94 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.
Dimensions / Specifications | |
---|---|
Unit of Measure | EA |
Item Dimensions | 18.60 in. x 8.80 in. x 22.90 in. (W x H x D) |
Item Weight | 42.500 lbs |
This item is sold by the EA |
Shipping Info | |
---|---|
Can Ship via UPS? | Yes |
Can Ship via Air Carrier? | Yes |
Hazmat restrictions? | No |
Additional Information | |
---|---|
Has Energy Star Rating? | No |
Is Certified with EPA/CPG? | No |
Considered Green (less environmental impact)? | Yes |
Made of Some or All Recycled Materials? | No |
Warranty Offered? | No |
Item Specifications | |
---|---|
Brand | Tripp Lite |
Manufacturer | Tripp Lite |
Manufacturer Part Number | SMC15002URM |
Product Line | SmartPro |
Product Model | SMC15002URM |
Product Name | Line-interactive UPS Power Supply |
Packaged Quantity | 1 Each |
Product Type | Line-interactive UPS |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 8 x NEMA 5-15R |
Protection Type | Black Out, Brownout, EMI / RFI, Over Voltage, Surge, Under Voltage |
Emergency Power OFF | Yes |
Cord Length | 9.84 ft |
Load Capacity | 1500 VA/1000 W |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
Input Current | 12 A |
Waveform Type | Pure Sine Wave, Sine Wave |
Surge Energy Rating | 570 J |
Circuit Breaker | Yes |
Alarm | Low Battery, Overload, Power Failure, Remote Shutdown, UPS Fault, UPS StartUp |
Battery Management | user-replaceable |
Status Indicators | LEDs |
Serial Port | Yes |
USB | Yes |
Backup/Run Time (Full Load) | 6.50 Minute |
Backup/Run Time (Half Load) | 17.70 Minute |
Hot Swappable | Yes |
Maximum Operating Temperature | 104°F (40°C) |
Sound Emission | 45 dB(A) |
Thermal Dissipation | 65.35 W |
Height | 3.5" |
Width | 17.3" |
Depth | 13.5" |
Rack Height | 2U |
Form Factor | Rack/Tower |
Weight (Approximate) | 46.50 lb |

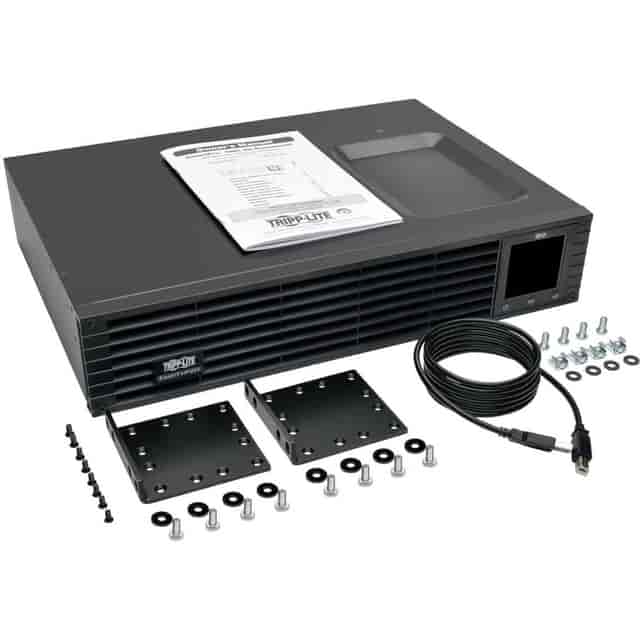

Package Contents | - SMC15002URM UPS System - USB Cable - 2 & 4 Post Rackmount Installation Hardware - Instruction Manual |
Certifications & Standards | UL Listed Certification |
Recycled | No |
Assembly Required | No |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Country of Origin | China |
Limited Warranty | 3 Year |
Additional Warranty Information | 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty. $250,000 connected equipment insurance |
Manufacturer Info | |
---|---|
Brand | Tripp Lite (website) |
Brand Contact | 773-869-1234 |
Warranty Offered? | n |
Manufacturer Stock No. | SMC15002URM |
Retail GTIN (UPC) | 00037332186249 |
Country of Origin | CN |
UNSPSC Number | 39121011 |
Product ID | 32328 |
