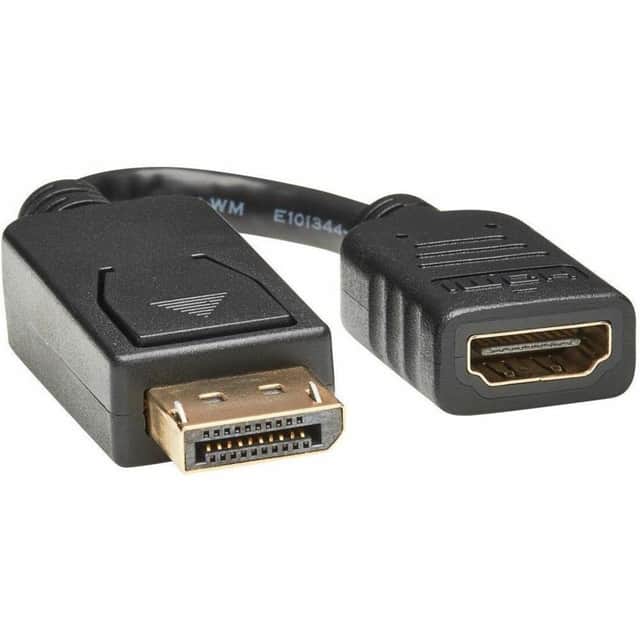

Tripp Lite Adapter Cable, 6" A/V Cable, First End: 1 x 19-pin HDMI Type A Digital Audio/Video, Female, Second End: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video, Male, Black, 1 Each
Click image to zoom in
-
Free Shipping
-
Secure Shopping
-
NET-30 Terms
-
Made In USA
Product Details
Product Highlights
- Male-to-female design connects Displayport to HDMI monitor
- Fully molded ends resist damage for long-lasting use
- Supports HD resolutions up to 1080p for crisp, clear images
- Also supports HD resolutions up to 1080p
- Requires DP++ (DisplayPort ++) port
Product Documents
DisplayPort to HDMI converter adapter allows you to connect your computer with a Displayport output to an HDMI monitor. Fully molded ends are durable for long-lasting use. Operating as a Passive adapter, this converter adapter requires that the connected computer has a DP++ (DisplayPort ++) port, which allows HDMI and DVI signals to be passed through. 6" converter adapter supports computer video resolutions up to 1920 x 1200, HD resolutions up to 1080p, and 7.1 audio surround sound.
Product Specifications
| Dimensions / Specifications | |
|---|---|
| Unit of Measure | EA |
| Item Dimensions | 7.00 in. x 0.50 in. x 9.00 in. (W x H x D) |
| Item Weight | 0.070 lbs |
| Box Pack Quantity | 1 EA |
| Carton Pack Quantity | 10 EA |
| Carton Pack Dimensions | 13.70 in. x 1.00 in. x 15.70 in. (W x H x D) |
| Carton Pack Weight | 0.730 lbs |
| This item is sold by the EA | |
| Shipping Info | |
|---|---|
| Can Ship via UPS? | Yes |
| Can Ship via Air Carrier? | Yes |
| Hazmat restrictions? | No |
| Additional Information | |
|---|---|
| Considered Green (less environmental impact)? | No |
| Made of Some or All Recycled Materials? | No |
| Warranty Offered? | Yes |
| Warranty Comments | Manufacturer's limited three-year warranty. |
| Item Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P136-000 |
| Product Model | P136-000 |
| Product Name | Adapter Cable |
| Packaged Quantity | 1 Each |
| Product Type | A/V Cable |
| Cable Length | 6" |
| Connector Type on First End | HDMI Type A Digital Audio/Video - Female |
| Connector on First End Details | 1 x 19-pin HDMI Type A Digital Audio/Video - Female |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Conductor | Copper |
| Features | Molded |
| Color Family | Black |
| Product Color | Black |
| Shipping Height | 9" |
| Shipping Width | 7" |
| Shipping Weight (Approximate) | 1.12 oz |
| Additional Information | System Requirements: Computer with a Displayport output, Display with a HDMI port, The P136-000 supports transmission of an audio signal as long as it is supported by the Displayport source. Check the documentation for your Displayport source for compatibility., The P136-000 is a Passive adapter, and requires that the connected computer has a DP++ ( Displayport ++ ) port, which allows HDMI and DVI signals to be passed through; check the documentation for your Displayport source for compatibility. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 year limited warranty |
| Manufacturer Info | |
|---|---|
| Brand | Tripp Lite by Eaton |
| Warranty Offered? | Yes |
| Manufacturer SKU | P136-000 |
| Retail GTIN (UPC) | 00037332148056 |
| Country of Origin | CN |
| UNSPSC Number | 26121609 |
| Product ID | 7579527 |
