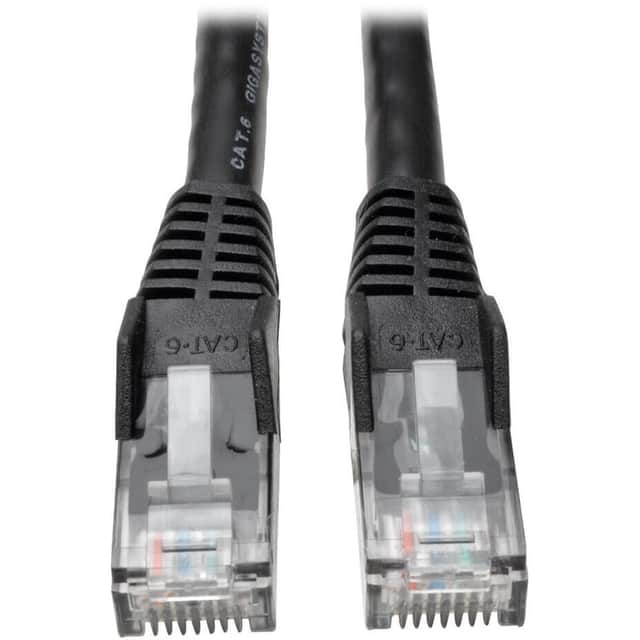

Tripp Lite Gigabit N201-014-BK Cat.6 UTP Patch Network Cable, 14 ft Category 6 Network Cable for Network Device, ATM, First End: 1 x RJ-45 Network, Male, Second End: 1 x RJ-45 Network, Male, 1 Gbit/s
Click image to zoom in
-
Free Shipping
-
Secure Shopping
-
NET-30 Terms
-
Made In USA
Product Details
Product Highlights
- High-speed design consistently distributes data, voice and video
- Molded RJ45 connectors feature integral strain relief for durability
- Snagless design protects locking tabs from being damaged
- Copper wire and staggered-pin plug keep near-end crosstalk levels low
- Meets variety of industry standards
Product Documents
Category 6 patch cable offers a high-speed solution for distributing data, voice and video over networks. Molded RJ45 connectors feature integral strain relief for enhanced durability. Snagless design protects the locking tabs from being damaged or snapped off during installation. High-quality copper wire and a staggered-pin plug design keep near-end cross-talk levels to a minimum. Durable construction is made from PVC four-pair stranded UTP and is rated for 550MHz/1Gbps communication. Cable meets current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11).
Product Specifications
| Dimensions / Specifications | |
|---|---|
| Unit of Measure | EA |
| Item Dimensions | 8.00 in. x 0.50 in. x 10.00 in. (W x H x D) |
| Item Weight | 0.400 lbs |
| Carton Pack Dimensions | 16.00 in. x 18.00 in. x 0.50 in. (W x H x D) |
| Carton Pack Weight | 2.900 lbs |
| This item is sold by the EA | |
| Shipping Info | |
|---|---|
| Can Ship via UPS? | Yes |
| Can Ship via Air Carrier? | Yes |
| Hazmat restrictions? | No |
| Additional Information | |
|---|---|
| Considered Green (less environmental impact)? | Yes |
| Made of Some or All Recycled Materials? | No |
| Warranty Offered? | Yes |
| Warranty Comments | Manufacturer's limited lifetime warranty. |
| Item Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N201-014-BK |
| Product Line | Gigabit |
| Product Model | N201-014-BK |
| Product Name | Gigabit N201-014-BK Cat.6 UTP Patch Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 14 ft |
| Connector Type on First End | RJ-45 Network - Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Conductor | Copper |
| Shielding | No |
| Jacket Type | CM |
| Device Supported | Network Device |
| Device Supported | ATM |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 1 Gbit/s |
| Boot Type | Snagless |
| Number of Pairs | 4 |
| Features | Molded |
| Features | Booted |
| Features | Strain Relief |
| Features | Stranded |
| Features | Minimized Near-End Crosstalk (NEXT) |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shipping Height | 9" |
| Shipping Width | 7" |
| Shipping Weight (Approximate) | 0.80 oz |
| Certifications & Standards | IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, ETL |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Limited Warranty | Lifetime |
| Manufacturer Info | |
|---|---|
| Brand | Tripp Lite by Eaton |
| Warranty Offered? | Yes |
| Manufacturer SKU | N201-014-BK |
| Retail GTIN (UPC) | 00037332125576 |
| Country of Origin | CN |
| UNSPSC Number | 26121620 |
| Product ID | 9163650 |
