Product Details

Product Highlights

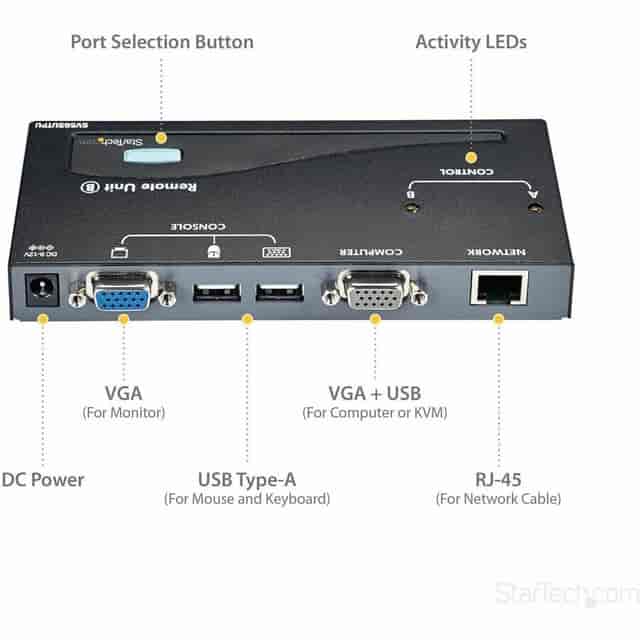

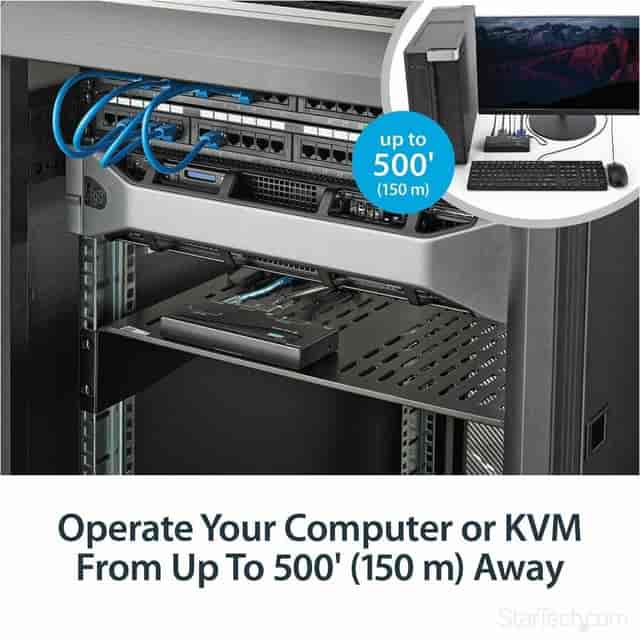

  • REMOTE OPERATION: Use the VGA over CAT5 extender to control a USB & VGA KVM or PC up to 500ft (150m) away; Supports hotkey commands, auto-switching between host and remote unit or dedicated control
  • COST-EFFECTIVE KVM EXTENSION: The KVM Extender provides a cost-effective way to convert existing standard KVM units into remote-access hardware, extending the capabilities of your hardware
  • EASY INSTALLATION: Plug and play KVM over Ethernet extender is easy to install using industry-standard UTP network cables and is OS independent, requiring no software or drivers to install
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this CAT5 KVM extender is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance

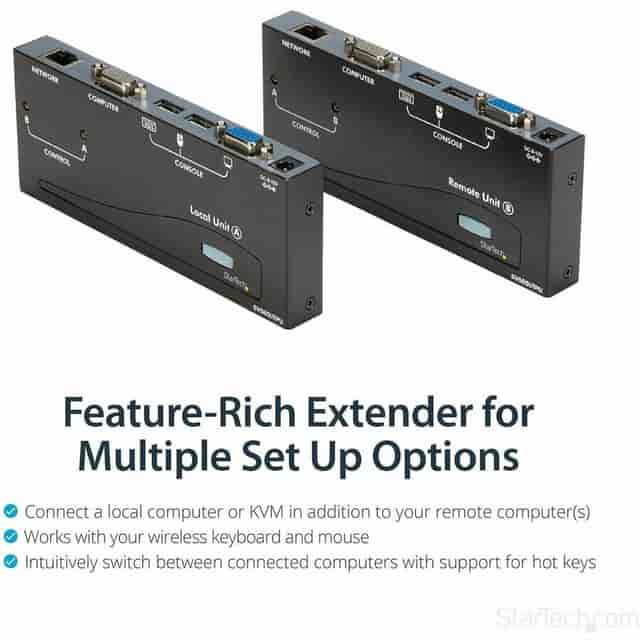

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. More from the Manufacturer

Product Specifications

Dimensions / Specifications
Unit of Measure KT
Item Dimensions 9.70 in. x 3.40 in. x 11.60 in. (W x H x D)
Item Weight 2.950 lbs
Carton Pack Quantity 1 KT
This item is sold by the KT
Shipping Info
Can Ship via UPS? Yes
Can Ship via Air Carrier? Yes
Hazmat restrictions? No
Additional Information
Considered Green (less environmental impact)? Yes
Made of Some or All Recycled Materials? No
Item Specifications
Manufacturer StarTech.com
Manufacturer Part Number SV565UTPU
Product Model SV565UTPU
Product Name USB VGA KVM Console Extender over CAT5 UTP - 500 ft
Packaged Quantity 1 Kit
Product Type KVM Console/Extender
Connectivity Technology Wired
KVM Technology Analog
Number of Computers Supported 2
Number of Local Users Supported 1
Number of Remote Users Supported 1
Maximum Operating Distance 500 ft
Graphic Mode XGA
Maximum Video Resolution 1024 x 768
Network (RJ-45) Yes
USB Yes
VGA Yes
Number of VGA Ports 4
Number of Network (RJ-45) Ports 2
Number of USB Ports 4
Input Voltage 120 V AC
Input Voltage 240 V AC
Input Voltage Range 110V AC to 240V AC
Power Consumption 5.40 W
Color Family Black
Product Color Black
Form Factor Desktop
Transmitter Height 0.80"
Transmitter Width 6.10"
Transmitter Length 3"
Receiver Height 0.80"
Receiver Width 6.10"
Receiver Length 3"
Transmitter Weight (Approximate) 1.32 lb
Receiver Weight (Approximate) 1.32 lb
Package Contents USB VGA KVM Console/Extender, 2 x 6 ft 2-in-1 USB VGA KVM Cables, 8 x Rubber Feet, 1 x Power Adapter, 1 x Instuction Manual
Environmentally Friendly Yes
Environmental Certification EU RoHS
Environmental Compliance Restriction of Hazardous Substances (RoHS) 2
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
REACH Declaration URL https://media.startech.com/cms/pdfs/sv565utpu_rohs.pdf
EU RoHS Declaration URL https://media.startech.com/cms/pdfs/sv565utpu_rohs.pdf
End of Life Manual Availability Yes
REACH free of SVHC Yes
WEEE Statement https://media.startech.com/cms/pdfs/sv565utpu_weee.pdf
Country of Origin Taiwan
TAA Compliant Yes
Limited Warranty 2 Year
Additional Warranty Information This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Manufacturer Info
Brand StarTech.com
Manufacturer SKU SV565UTPU
Retail GTIN (UPC) 00065030832625
Country of Origin TW
