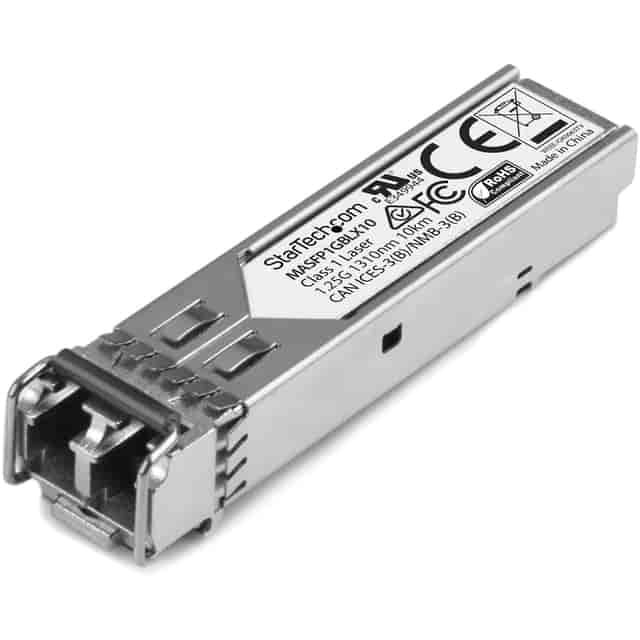

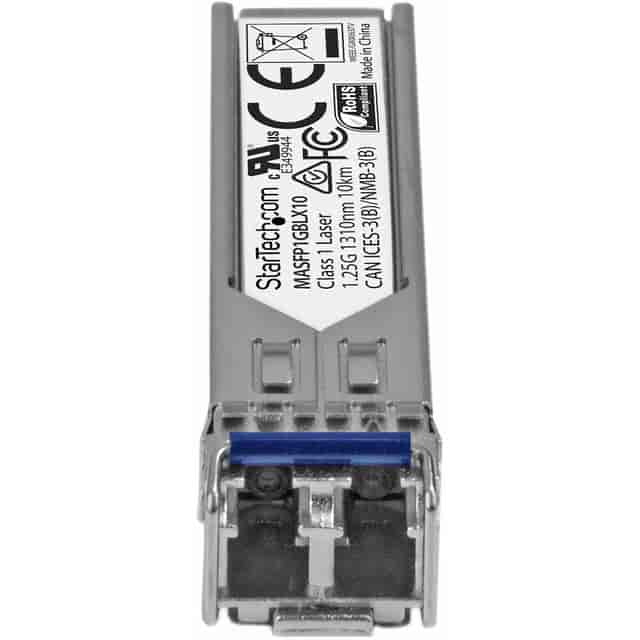

StarTech.com Cisco Meraki MA-SFP-1GB-LX10 Compatible SFP Transceiver Module - 1000BASE-LX, For Data Networking, Optical Network, 1 x LC Duplex 1000Base-LX Network, Optical Fiber, Single-mode, 1.25 Gigabit Ethernet

Item # STCMASFP1GBLX10
Ships via
  • STCMASFP1GBLX10 Image Thumbnail 1
  • STCMASFP1GBLX10 Image Thumbnail 1
  • STCMASFP1GBLX10 Image Thumbnail 2
Item is not available for purchase

This product is not currently available for purchase. This may be because of insufficient stock or because the manufacturer has discontinued this item.

NET-30 Terms withCredit KeyLearn More
Ink Toner Icon
Running Low on Ink or Toner?
Use our Ink & Toner Finder
  • Free Shipping Icon Free Shipping
  • Security Icon Secure Shopping
  • NET-30 Icon NET-30 Terms
  • USA Icon Made In USA
Office Expert
Ask Our Office Concierge
Let our knowledgeable staff help you today!

Product Details

Product Highlights
  • 100% CISCO MERAKI MA-SFP-1GB-LX10 COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
  • TECHNICAL SPECS: 1000BASE-LX - 1 Gbps - Single Mode (SMF) - LC Connector - 1310nm - Digital Diagnostic Monitoring (DDM) - Distances up to 10km (6.2mi)
  • TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
  • OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24
  • WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
Product Documents

The MASFP1GBLX10 is a Cisco Meraki MA-SFP-1GB-LX10 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (100Mbps) connectivity over fiber cable, for 1000Base-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi). Technical Specifications: Wavelength: 1310nm , Maximum Data Transfer Rate: 1.25 Gbps , Type: Single Mode Fiber , Connection Type: LC Connector , Maximum Transfer Distance: 10 km (6.2 mi) , MTBF: 3,092,408 hours , Power Consumption: Less than 1 Watt , Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. More from the Manufacturer

Product Specifications

Dimensions / Specifications
Unit of Measure EA
Item Dimensions 3.70 in. x 1.40 in. x 4.60 in. (W x H x D)
Item Weight 0.110 lbs
Carton Pack Quantity 1 EA
This item is sold by the EA
Shipping Info
Can Ship via UPS? Yes
Can Ship via Air Carrier? Yes
Hazmat restrictions? No
Additional Information
Considered Green (less environmental impact)? Yes
Made of Some or All Recycled Materials? No
Item Specifications
Manufacturer StarTech.com
Manufacturer Part Number MASFP1GBLX10
Product Name Cisco Meraki MA-SFP-1GB-LX10 Compatible SFP Transceiver Module - 1000BASE-LX
Packaged Quantity 1 Each
Product Type SFP (mini-GBIC)
Application/Usage Data Networking
Application/Usage Optical Network
Total Number of Ports 1
Connector Type LC
Interfaces/Ports Details 1 x LC Duplex 1000Base-LX Network
Media Type Supported Optical Fiber
Fiber Mode Supported Single-mode
Ethernet Technology 1.25 Gigabit Ethernet
Network Technology 1000Base-LX
Form Factor Hot-pluggable
Form Factor Hot-swappable
Height 0.5"
Width 5.1"
Depth 2.2"
Weight (Approximate) 0.04 lb
Compatibility MSA Compliant Cisco Meraki Switches: MS225, MX400, MS250, MS350, MX84
REACH Declaration URL https://media.startech.com/cms/pdfs/masfp1gblx10_rohs.pdf
EU RoHS Declaration URL https://media.startech.com/cms/pdfs/masfp1gblx10_rohs.pdf
End of Life Manual Availability Yes
REACH free of SVHC Yes
WEEE Statement https://media.startech.com/cms/pdfs/masfp1gblx10_weee.pdf
Country of Origin China
Environmentally Friendly Yes
Environmental Certification EU RoHS
Environmental Compliance Restriction of Hazardous Substances (RoHS) 2
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty Lifetime
Manufacturer Info
Brand StarTech.com
Manufacturer SKU MASFP1GBLX10
Retail GTIN (UPC) 00065030869454
Country of Origin CN
UNSPSC Number
Product ID 67611
